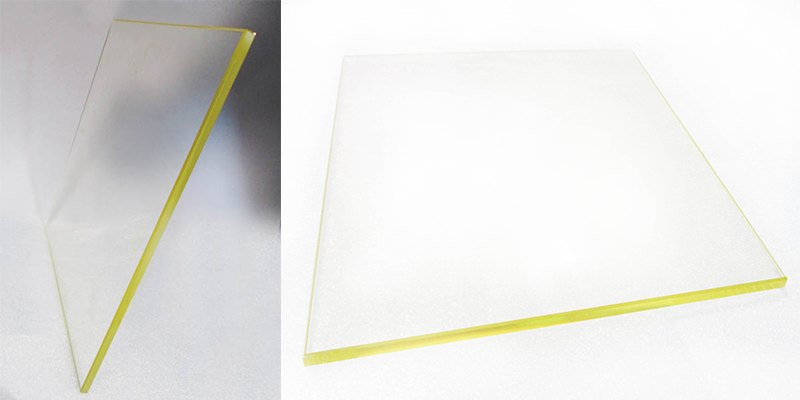

Righetti is a major provider of x-ray and radiation protective lead glass shielding products.
Radiation protective lead glass is utilized in medical diagnostic imaging control windows for applications of x-ray gamma radiation energies.
Lead glass can also turn into switchable glass with LCD interlayer. With a single push of the button in “on” position, the glass becomes transparent and in «off» position the glass becomes opaque and blocks vision through it.
We can provide a variety of standard sizes and thicknesses of lead glass to meet the needs of nearly any application.
Below our lead glasses available with short delivery :
| Thickness in mm | X-Ray Peak Voltage (KV) / Lead Equiv. (mmPb) | Size in mm | kg/m2 | ||||
| 80kV | 100kV | 110kV | 150kV | 200kV | |||
| 7 – 8,5 | 2,3 | 2,3 | 2,3 | 2,0 | 1,8 | 2745 x 1375 | 40,8 |
| 8,5 – 10 | 2,8 | 2,8 | 2,8 | 2,6 | 2,1 | 2135 x 1220 | 48 |
| 11- 13 | N/A | 3,5 | 3,6 | 3,2 | 2,7 | 2440 x 1220 | 62,4 |
