The INOVA® Switchable Glass, also called opacifying glass, is an EVA laminated glass manufactured by an assembling process that encapsulates a liquid crystal polyester film between 2 glass sheets.
The electric current makes the active controlled-occultation glass change from a transparent (ON) to opaque (OFF). When the power is turned off, it gets its opaque appearance for more privacy.
A simple switch or a remote control is enough to activate its change of state. The operation is reversible and can be repeated indefinitely. It can also be controlled from a smartphone via Wi-Fi (frequency required: 2.4 GHz (gigahertz)). The operation is reversible and can be repeated indefinitely.
How it works
This glass can be controlled using a switch, a remote control (optional), or your phone via Wi-Fi (optional).
The electric current through the film between the two glasses changes the glazing from opaque to transparent for more privacy and intimacy. When the current is cut, the glass returns to its original opaque state.
Its advantages
This innovative glass is therefore ideal for managing spaces, whether in private or public areas.
It owns multiple advantages :
- Almost instantaneous reversibility
- Silent and unlimited change of state
- Low power consumption
- Protection against UV rays
- Avoids installation of conventional occultation system
- Remote control or Wi-Fi (optional)
Applications
- Interior partitions
- Swing or sliding door
- Glass floor
- Windows or glass facades in double or triple glazing
- Stores’ shop windows
- Overhead projection screen, media support
XXL sizes
With Righetti and its Inova® Switchable Laminated Glass range, you can see things big thanks to the XXL version: the maximum size of this glass is 1800 mm x 3500 mm.
There are the largest dimensions of the market. Indeed, high glasses are becoming more and more popular for the construction of glass partitions.
The magic of smart glass thanks to WiFi (optional)
Experience innovation every day and transform your interior with the magic of smart glass that adapts to your needs. More than just a glass, it’s a revolution in your living space!
Transparency and opacity alternate under your fingertips, thanks to your phone and a simple WiFi connection.
Connect to your smart glass via your phone and the OneSmart or Smart Life mobile app. To do this, simply configure your glass using the WiFi of your Internet box. Please note that this feature only works with a 2.4 GHz (gigahertz) WiFi connection. It is therefore ideal for homes or spaces using this frequency. Make sure to check with your internet service provider beforehand.
Thanks to this advanced technology, you can now control your glass directly from your phone, wherever you are.
Two additionnal colors

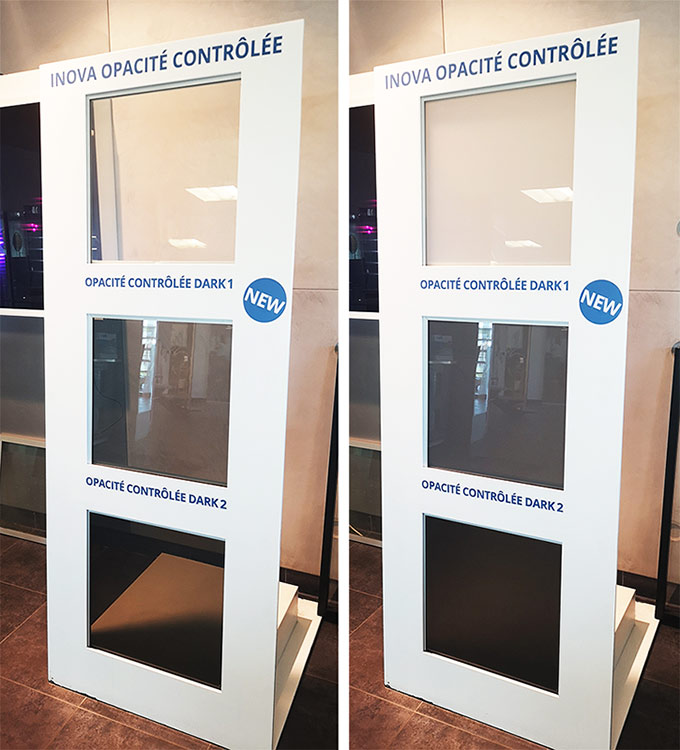

Discover our 2 other colors: Dark 1 and Dark 2
Technical information

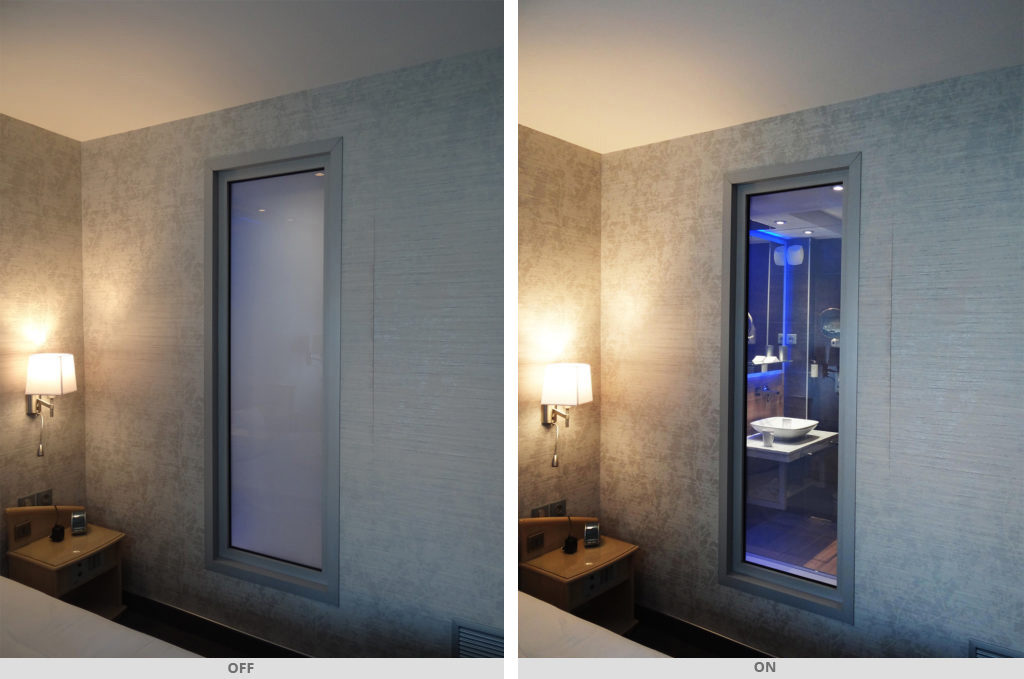

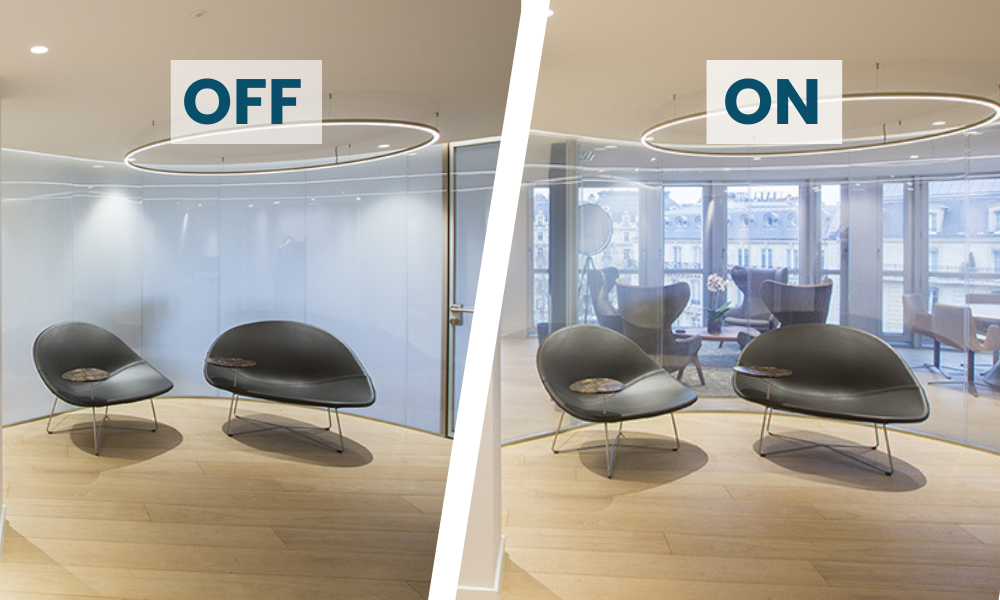

- The glass is white when it’s turned OFF and it is transparent in ON mode
- A maximum surface of 15m² per transformation
- Light transmission: 75% ON and 55% OFF
- Power consumption: 5 Watts/m²
- Thickness: 13 mm standard (other thicknesses on request)
- Can be mounted in insulating glass
- Supplied with transformer
- Optional receiver remote control
- Optional Wi-Fi control (frequency required: 2.4 ghz (gigahertz))
Composition and installation
The glazing includes a 2-meter black and white wire connected to a pre-wired transformer capable of powering up to 15m² of glazing.
We offer 4 different transformers depending on the number of square meters of glass.
An optional receiver and remote control are also supplied.
All installations must be carried out by a qualified electrician and installed in accordance with current standards. Acetic silicones may not be used. Only neutral silicones may be used.
All connections to the switchable glass have already been made.
For optimal use, it is essential to install it in an environment free from excessive lighting (halogen lamps, grazing light, computer or TV screens, overhead projectors, sunlight).
Standards
According to the IQNET, an AFNOR’s partner, our supplier of liquid crystal films complies with the 9001:2008 and the 14001:2004 standards.
Discover Inova® Reverse Laminated Glass
The smart glazing market sees the arrival of INOVA® Reverse Laminated Glass. Unlike the INOVA® switchable laminated glass, this opacifying glass automatically switches from a transparent state (OFF) to an opaque state (ON).
What if we reversed the functionning of INOVA® Switchable Laminated Glass? That’s the principle of INOVA® Reverse Laminated Glass! Indeed, INOVA® Reverse Laminated Glass automatically transitions from a transparent state (OFF) to an opaque state (ON).
The advantage of this solution? You can constantly enjoy transparent glazing and isolate yourself whenever you want by simply activating the glazing.
Both INOVA® Reverse and INOVA® Switchable Glass have the same composition. It can also be controlled using a switch, a remote control (optional), or your phone via Wi-Fi (required frequency: 2.4 GHz (gigahertz)).
